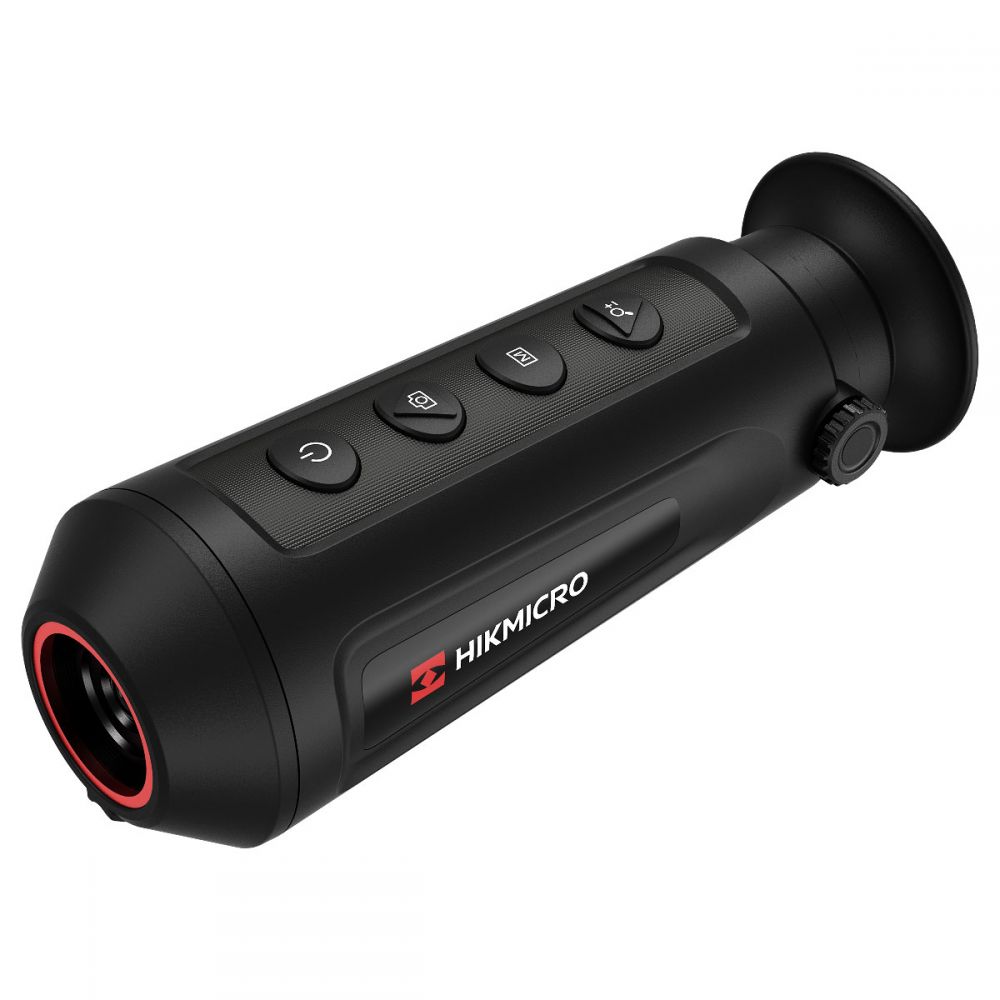

Hikmicro Lynx 6mm (160x120) Smart Thermal Monocular

The Hikmicro Lynx 6mm Smart Thermal Monocular produces a high quality thermal image and boasts an array of features that you would usually find on the more up-market thermal products.

The Hikmicro Lynx 6mm Smart Thermal Monocular has a 160x120px 17µm thermal sensor (35mK NETD Rating*) with HIK software that delivers a fine detailed image. Utiising WiFi, you have a dedicated app which allows you to take control of the Lynx's settings and features from your smartphone.

*35mK NETD Rating is one of the most sensitive sensors available on the market, which is capable of detecting even the smallest of temperature differences!

The Hikmicro Lynx 6mm Smart Thermal Monocular comes with a IP67 rating which guarantees a robust chassis that repels dust and rain, protecting you from the worst of the weather. the Lynx has an impressive battery life of 10hrs of continuous use!

The Hikmicro Lynx 6mm Smart Thermal Monocular comes with a 3 year UK warranty. (3 years - Main Unit/2 years - Battery). HikMicro has a Service Centre located in London for UK repairs.

T-VISION APP: Connect – Control – Stream

Download the dedicated T-Vision app on your smart phone to access additional features such as streaming your output in real-time to share your viewpoint with others. You can also record images and video, optimise the colour profile, display settings and magnification all from the easy to use app.

Specifications

MAIN

• Sensor 160×120px @ 17µm
• Objective Lens 6mm
• Detection Range (Vehicle 1.4 x 4m) 559m
• Detection Range (Human 1.8 x 0.5m) 182m

SENSOR

• Type Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution, pixels 160×120 px
• Pixel pitch, µm 17µm
• Frame rate, Hz 50 Hz
• NETD Rating 35mK

OPTICS

• Objective lens F1.1
• Magnification (Optical) 0.6x
• Magnification (Digital) 1x, 2x, 4x,
• Field of view 24.7° × 18.7° (H × V)

DISPLAY

• Type 5.08mm, LCOS
• Resolution, Pixels 720 × 540
• Colour Palettes Black Hot, White Hot, Red Hot, Fusion

VIDEO & SOUND

• Video Recorder
• Build in memory - 8gb

ADDITIONAL FEATURES

• Hot Tracking
• WiFI hot spot
• T-Vision App support

ENVIRONMENTAL

• Degree of protection, IP code IP67
• Dust protection Protected against dust ingress
• Water protection Protected against temporary submersion in water
• Operating temperature range -20 °C to 55 °C

WEIGHT & SIZE

• Dimensions, mm 158 mm × 61 mm × 57 mm
• Weight, kg 0.25 kg

POWER SUPPLY

• Operating time on battery
• (WiFi & Hot tracking disabled) 10 hours continuous running
• Charging interface USB-C
• Battery capacity after 1000 cycles 80%
