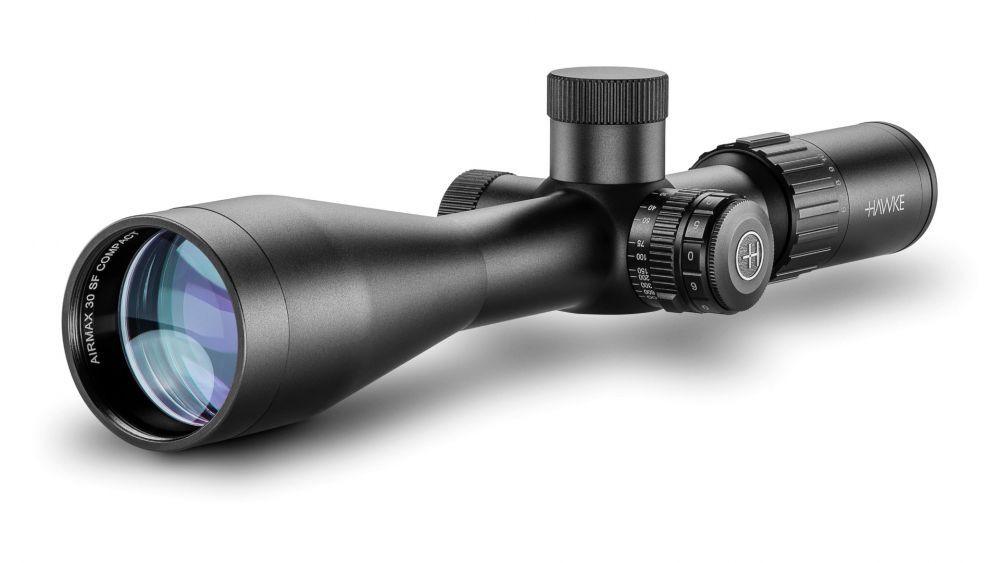

Hawke Airmax 30 SF Compact 6-24x50 AMX IR
£305.00
The Hawke Airmax 30 SF Compact range are specialist scopes designed by airgunners for airgunners. All Hawke Airmax 30 SF Compact scopes feature H2 optics in a variety of configurations designed to suit airgun characteristics.
Ref
13220
Features
- Capped Target Turrets
- 30mm Mono-Tube Chassis
- Wide Angle
- Side Focus
- Illumination
- 16 Layer Fully Multi-Coated Lenses
- High Torque Zoom Ring
- Fast Focus Eyebell
- AMX Reticle Designed For Airguns
- Nitrogen purged
- Shockproof
- Waterproof
- Fog proof
- All calibre rated
- Hawke No-Fault Lifetime Warranty
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Specification
Length: 329mm / 13"
Weight: 670g / 23.6oz
Eye relief: 76mm / 3"
Focus/Parallax - Side Focus: 9m - ∞ / 10yds - ∞
Field of View: 7.3 - 1.8m @100m / 21.9 - 5.5ft @100yds
Exit Pupil: 8.3-2.1mm / 0.33-0.08"
Chassis: 30mm Mono-tube
Optical System: 6-24x
Objective: 50mm
Illumination: Red
Reticle: AMX IR
Elevation Increment: 1⁄10 MRAD
Elevation Adjustment Range: 16 MRAD
Windage Increment: 1⁄10 MRAD
Windage Adjustment Range: 16 MRAD
Material: Aluminium
Ocular Type: Fast Focus
Lens Coating: Fully Multi-Coated - 16 Layers
Power Selector Style: Knurled Posi-Grip
Focal Plane: Second Focal Plane (SFP)
Turret Caps: Yes
Turret Type: Capped Target Turrets
